Product Description:

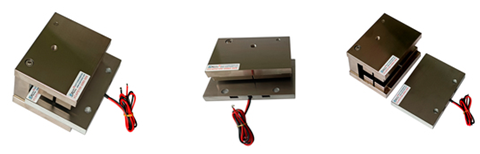

The VCAP series Planer Actuators have a lower stroke length per size than Rectangular,But they also have a lower height profile .Forces range up to 500N and strokers to 15mmThe VCAP series Planer Actuator are the ideal solution for very small stroke X-Y Axis movements and their major market is in the semiconductor and micro machine tool industries.
The Linear Voice Coil Actuator (VCAP Series) is an advanced linear voice coil actuation system that offers long life, high reliability, and ensures accurate and precise linear motion in an economical and efficient manner.The VCAP Series offers excellent force, speed, and accuracy for a wide variety of applications.
Features:
- Product Name: Linear Voice Coil Actuator
- Input Voltage: 24V
- Positioning Accuracy: High
- Weight: Light
- Stroke Length: 20mm
- Operating Temperature: Wide
Technical Parameters:
| Parameter | Value |
| Lifetime | Long |
| Noise Level | Low |
| Protection | IP67 |
| Speed | High |
| Model Number | VCAP Series |
| Force | High |
| Type | Flat Type Voice Coil Motor |
| Positioning Accuracy | High |
| Weight | Light |
| Duty Cycle | High |
| Voice Coil Actuation Mechanism | Yes |
| Linear Voice Coil Actuator System | Yes |
| Linear Voice Actuation System | Yes |
| Product Model | Peak Force
(N) | Continuous Force
at 25℃(N) | Total Stroke
(mm) | Max Voltage
(V) | Back EMF Constant
(V/m/s) | Length
(mm) | Width
(mm) | Height
(mm) |
| VCAP0020-0068-00A | 20 | 5.5 | 6.8 | 8.2 | 4.4 | 39 | 50 | 21.5 |
| VCAP0020-0160-00A | 20 | 5.3 | 16 | 27.6 | 4.4 | 59 | 50 | 22.5 |
| VCAP0030-0200-00A | 30 | 12.3 | 20 | 24.3 | 10.5 | 80 | 74 | 25 |
| VCAP0100-0020-00A | 100 | 47 | 4 | 41.2 | 80.1 | 110 | 105 | 51 |
Applications:
The VCAP series Planer Actuator are the ideal solution for very small stroke X-Y Axis movements and their major market is in the semiconductor and micro machine tool industries.
SUPT MOTION's VCAP Series Linear Voice Coil Actuator is an ideal choice for a wide range of applications. With its Voice Coil Actuation Mechanism, Linear Voice Actuation System and ISO9001 Certification, it has high speed, wide operating temperature, IP67 protection and compact size, all while maintaining high positioning accuracy. With minimum order quantity of 1 unit, it is available at a competitive price of $107. It comes with Carton Packaging and has a delivery time of 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated. Payment terms include T/T . Finally, SUPT MOTION's VCAP Series Linear Voice Coil Actuator has a supply ability that is available upon interview.
